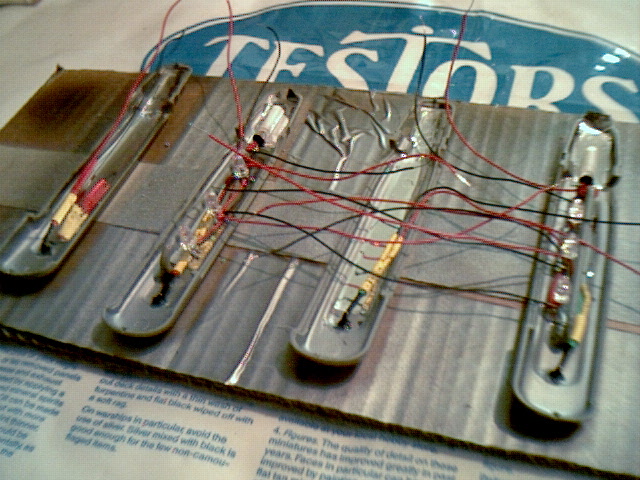

I've installed the
various electronics into the nacelles - took five hours, but it's
complete.
 |
|
I bent the fibres and polished them just
like I did for the saucer section, they buffed up just fine, and the

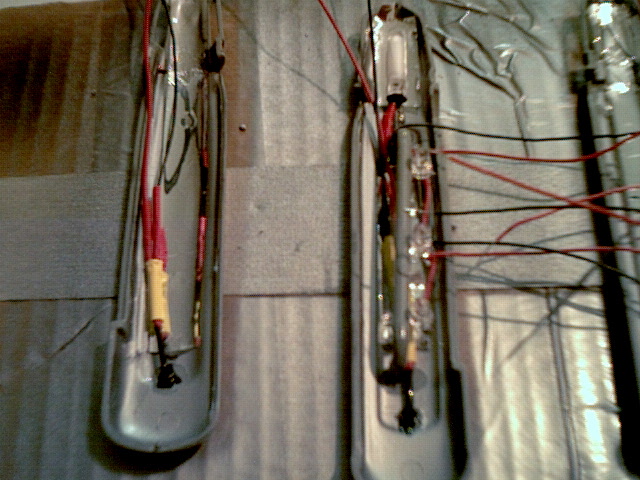

little LEDs light them up like colored flashlights. The wiring
in there is pretty tight, you can get more detail from the image below
(though a bit out of focus).
|
|
As you can see above, the wiring's pretty
tight. I used a cone of onion skin paper to diffuse the red
LEDs, that worked quite well. I'm not sure how I'll do the same
for the blue LEDs, though, as I'd rather put a kind of wall of paper
between the blue array and the warp coil plastic and that's looking
pretty complicated. The next steps
are cleaning up the nacelles and placing the red painted plastic,
painting the blue warp coils and the paper to diffuse the blue array,
then final assembly (which looks like it's going to be a trick!). |
|
|
|
|
|
|
|
|
